1979 Yamaha RX 125 - About the product Yamaha past is indeed no end, although now its existence has begun to disguise because of the difficulty of goods in good condition and scarcity of parts plus a sink in it, making the hunters older motors have to think extra hard to mengkoleksinya.
Yamaha RX 125 his name, was born in 1979 and pave the streets ofthe country until the year 1982/83 's. I myself was not so clear abouthow these products get into the sales line of Yamaha Indonesia(YMKI) at the time, whether produced by the system in CBU or CKDas RX-King. Clearly, this bike is the next generation of successYamaha RX-100 which first fro Indonesia domestic market in the period 1976 to 1981. But that sometimes make me wonder, why are vulnerable time of production of this bike are relatively shorter than inthe younger (RX-100) or his brother (RX-King 135)?.

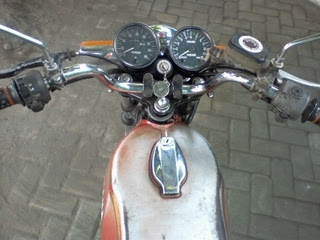

1979 Yamaha RX 125 Pictures

Yamaha RX still like other families, who adopted the technology on this bike was equally conventional 2-stroke. It can be seen from kubikasi for 123cc engine which, with a bore x stroke 56mm x 50mm, air cooled, 4 speed, and fuel pengkabut processed by Mikuni VM22. About horse power, this motor can produce 13 horsepower at the engine bergasing in 7.000rpm, obtained by compression of 6.4: 1, power is removed fairly okay for the motor size old era.

1979 Yamaha RX 125 Twin
Yamaha RX125 Twin

In the model, type motors Yamaha RX output exactly have that kind of timeless. The point of the era to the era of the 90s 70'an, design motors are not too adventurous. Seem minimalist but masculine character. Well masculine character can also be found on the RX-125, a tank model of oval with a round head lamp and tail lamp boxes, oldies but goodies characterize impression. The impression is very thick oldies close look at the use of all the chains that are still wrapped from front to rear as well as round-shaped swing arm models .... it's so classic!

Yamaha RX 125 1979 Specifications :

General information
Model:Yamaha RX 125
Year:1979
Category:Classic
Rating:72.3 out of 100
Engine and transmission
Displacement:125.00 ccm (7.63 cubic inches)
Engine type:Single cylinder, two-stroke
Power:13.00 HP (9.5 kW)) @ 7000 RPM
Torque:13.34 Nm (1.4 kgf-m or 9.8 ft.lbs) @ 7000 RPM
Compression:6.9:1
Bore x stroke:56.0 x 50.0 mm (2.2 x 2.0 inches)
Fuel system:Carburettor. Mikuni VM24SH
Fuel control:Port control
Ignition:Magneto
Lubrication system:Autolube
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Chain
Exhaust system:Single chrome pipe
Chassis, suspension, brakes and wheels
Frame type:Painted tubular steel
Front suspension:Telescopic forks
Rear suspension:Swing arm twin shocks
Front tyre dimensions:3/0-18
Rear tyre dimensions:3/0-18
Front brakes:Single disc
Rear brakes:Expanding brake (drum brake)
Physical measures and capacities
Dry weight:96.0 kg (211.6 pounds)
Power/weight ratio:0.1354 HP/kg
Overall height:1,060 mm (41.7 inches)
Overall length:1,915 mm (75.4 inches)
Overall width:730 mm (28.7 inches)
Ground clearance:160 mm (6.3 inches)
Wheelbase:1,240 mm (48.8 inches)
Fuel capacity:10.00 litres (2.64 gallons)
Other specifications
Starter:Kick
Color options:Red/black
