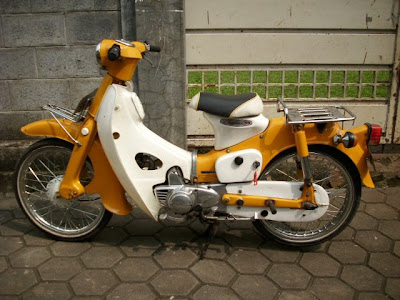

Honda Pispot C-50 Pictures
Honda Pispot C-50 Classic Motorcycles
Bike Description and General information
Service Infromation
Valve Clearance Cold - Inlet : 0.05 mm (0.002")
Valve Clearance Cold - Exhaust : 0.05 mm (0.002")
Tyre Pressure Front Bar / psi : 26 psi
Tyre Pressure Back Bar / psi : 28 psi
Tyre Pressure Front - Pillion Bar / psi : 32 psi
Tyre Pressure Back - Pillion Bar / psi : 32 psi
Engine Oil Grade SAE : 20-50
Engine Oil quantity (litres) : 0.8 litres
Spark Plugs Gap (mm) : 0.6 - 0.7 mm (0.024 - 0.028")
Points Gap mm : 0.3 - 0.4 mm (0.012 - 0.016")
Honda - C 50 L 80-85
Honda C 50 L 80-85 Parts & Accessories
Brakes
Front Drum
Rear Drum
Rear Drum Size 110 mm
Front Drum Size 110 mm
Dimensions
Length 1795 mm
Width 640 mm
Height 975 mm
Wheelbase 1185 mm
Ground Clearance 130 mm
Rake 63∘
Trail 75 mm
Dry Weight 68 kg
Fuel Capacity 3 litres
Electrics
Voltage 6v
Main Fuse 15 amp
Ignition Coil/points
Charging System Hitachi F120
Spark Plugs NGK C7HSA
Bulb-Headlight 25/25 watts
Battery Yuasa 4 amp hour
Engine
Type Air Cooled 4 Stroke SOHC Flat Single
Bore x Stroke 39.0 x 41.4
Compression Ratio 8.8:1
Displacement 49 cc
No. of Valves 2
Starting Kick start
Air Filtration Paper filter
Carburation Keihin DP13N13
Carburation Main Jet 70
Carburation Idle Jet 35
Pilot Screw Setting 1 - 1 1/4
Transmission
Clutch Type Automatic multi plate clutch.
Sprocket front 12
Sprocket rear 41
Final Drive Chain
Chain Number of Links 98
Transmission 3 Speed automatic
Gearchange Pattern 1 N 2 3
Misc.
Motorcycle Style Step Through
Frame Spine type, scooter style
Swing Arm Pressed steel
Power
Max Power Output 4.8 bhp@10000 rpm
Suspension
Front Hydraulically dampened leading link forks
Rear Two hydraulic shock absorbers
Tyres
Front 225-17 Tubed
Rear 250-17 Tubed
Wheels
Front 17" Wire
Rear 17" Wire
